dwl

installation

sudo pacman -S wlroots wayland-protocols xorg-xwayland kitty keyd wmenu slurp grim wl-clipboard
git clone 'https://github.com/vectorspacexyz/dwl.git'

The patches I applied were:

  1. bar-0.7.patch
  2. barcolors.patch
  3. moveresizekb.patch
  4. simple_scratchpad-v0.7.patch

All of the patches were very straightforward. However I had issues with barcolors patch. Look into drawstatus function to see the mods I've made (with Claude AI) to get it to work. However even with those mods I wasn't able to display nested fg-bg color formatting like: ^bg(FFFF00)^fg(000000)%s: %d%%^fg()^bg().

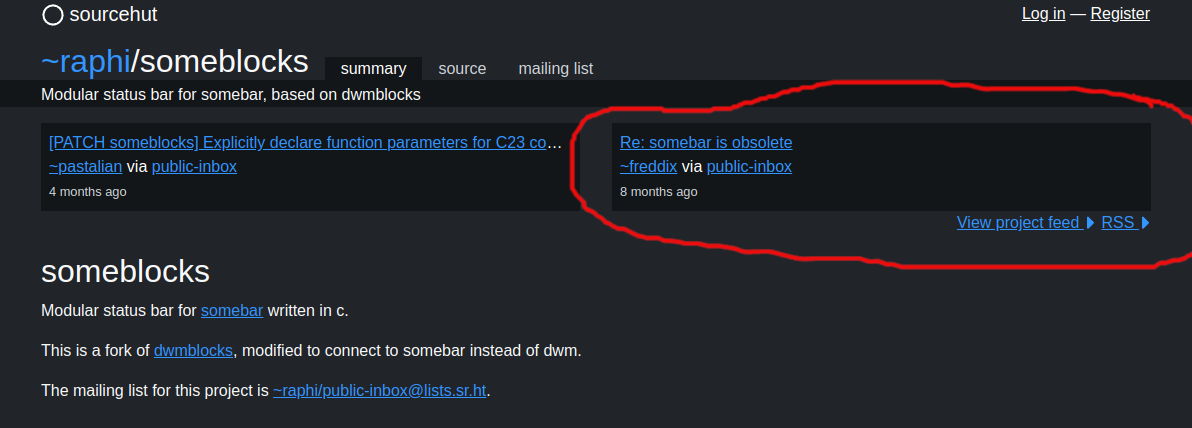

someblocks without somebar

source: https://sr.ht/~raphi/someblocks/


Yeah so don't bother installing somebar.

cd ~/admin
git clone 'https://git.sr.ht/~raphi/someblocks/'
cd someblocks

You need to apply this patch: https://lists.sr.ht/~raphi/public-inbox/patches/56817

I copied it over to some.patch

patch -p1 <some.patch
make
sudo make install
/home/vector/admin/someblocks/blocks.h
//Modify this file to change what commands output to your statusbar, and recompile using the make command.
static const Block blocks[] = {
    /*Icon*/    /*Command*/     /*Update Interval*/ /*Update Signal*/
    {"", "$HOME/bin/bar/data.sh",                   1,      0},
    {"", "$HOME/bin/bar/battery.sh",                    5,      10},
    {"Mem:", "free -h | awk '/^Mem/ { print $3\"/\"$2 }' | sed s/i//g", 30,     0},

    {"", "date '+%b %d (%a) %I:%M%p'",                  5,      0},

    /* Updates whenever "pkill -SIGRTMIN+10 someblocks" is ran */
    /* {"", "date '+%b %d (%a) %I:%M%p'",                   0,      10}, */
};



//sets delimeter between status commands. NULL character ('\0') means no delimeter.
static char delim[] = " | ";
static unsigned int delimLen = 5;
/home/vector/bin/bar/battery.sh
#!/bin/bash
# Loop through all attached batteries and format the info
for battery in /sys/class/power_supply/BAT?*; do
    # If non-first battery, print a space separator.
    [ -n "${capacity+x}" ] && printf " "
    # Sets up the status and capacity
    case "$(cat "$battery/status" 2>&1)" in
        "Full") status="FULL" ;;
        "Discharging") status="DISCHARGING" ;;
        "Charging") status="CHARGING" ;;
        "Not charging") status="NOT CHARGING" ;;
        "Unknown") status="UNKNOWN" ;;
        *) exit 1 ;;
    esac
    capacity="$(cat "$battery/capacity" 2>&1)"

    # Set colors based on status and capacity
    if [ "$status" = "DISCHARGING" ] && [ "$capacity" -le 30 ]; then
        # Red background for discharging and below 30%
        printf "^bg(FF0000)%s: %d%%^bg()" "$status" "$capacity"
    elif [ "$status" = "DISCHARGING" ]; then
        # Yellow background for discharging
    printf "^fg(FFFF00)%s: %d%%^fg()" "$status" "$capacity"
    elif [ "$status" = "CHARGING" ]; then
        # Blue background for charging (dwm blue)
        printf "^fg(00FF00)%s: %d%%^fg()" "$status" "$capacity"
    else
        # No background color for other states
        printf "%s: %d%%" "$status" "$capacity"
    fi
done && printf "\\n"
/home/vector/bin/bar/data.sh
#!/bin/sh
# Module showing network traffic. Shows the total amount of data that has been
# received (RX) or transmitted (TX) with colored arrows when traffic exceeds 1MB/s.

# Cache file to store previous values
CACHE_FILE="/tmp/network_traffic.cache"

update() {
    sum=0
    for arg; do
        read -r i < "$arg"
        sum=$(( sum + i ))
    done
    echo "$sum"
}

# Get current values
rx=$(update /sys/class/net/[ew]*/statistics/rx_bytes)
tx=$(update /sys/class/net/[ew]*/statistics/tx_bytes)

# Check for previous values
if [ -f "$CACHE_FILE" ]; then
    read -r prev_rx prev_tx < "$CACHE_FILE"

    # Calculate differences (bytes)
    rx_diff=$(( rx - prev_rx ))
    tx_diff=$(( tx - prev_tx ))

    # 1MB in bytes
    # MB_THRESHOLD=1048576
    MB_THRESHOLD=262144

    # Set arrow colors based on threshold
    if [ "$rx_diff" -ge "$MB_THRESHOLD" ]; then
        rx_arrow="^fg(00FF00)⮟^fg()"
    else
        rx_arrow="⮟"
    fi

    if [ "$tx_diff" -ge "$MB_THRESHOLD" ]; then
        tx_arrow="^fg(FF0000)⮝^fg()"
    else
        tx_arrow="⮝"
    fi
else
    # First run, no coloring
    rx_arrow="⮟"
    tx_arrow="⮝"
fi

# Save current values for next run
echo "$rx $tx" > "$CACHE_FILE"

# Output with potentially colored arrows
printf "%s %sB %s %sB\n" "$rx_arrow" "$(numfmt --to=iec "$rx")" "$tx_arrow" "$(numfmt --to=iec "$tx")"

The battery in the above script works alongside udev rules:

/etc/udev/rules.d/90-battery-monitor.rules
# Rule for when switching to battery
ACTION=="change", SUBSYSTEM=="power_supply", ATTRS{type}=="Mains", ATTRS{online}=="0", \
    RUN+="/bin/sh -c 'pgrep someblocks >/dev/null && pkill -SIGRTMIN+10 someblocks || true'"

# Rule for when switching to AC
ACTION=="change", SUBSYSTEM=="power_supply", ATTRS{type}=="Mains", ATTRS{online}=="1", \
    RUN+="/bin/sh -c 'pgrep someblocks >/dev/null && pkill -SIGRTMIN+10 someblocks || true'"

Reload udev:

sudo udevadm control --reload-rules
sudo udevadm trigger

On a related note you can get live battery info with:

acpi -i

getting good glyphs for somebar

https://github.com/Templarian/MaterialDesign-Font

source: https://www.reddit.com/r/archlinux/comments/q03x8j/comment/hf5sdqq

Getting app id

dwlmsg git: https://codeberg.org/notchoc/dwlmsg.git

./dwlmsg -w -c
